Description
Control The Flow of Your Product
This sanitary fitting will work great with nearly any industry that requires sanitary fluid management, thanks to Chemseal’s quality sanitary stainless steel material.
- Surface finish 180 Grit ID/150 Grit OD
- Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit
- Fittings available as threaded or unthreaded
- Comes in many different sizes and tube wall thickness
When it comes to high-quality, sanitary stainless steel fittings, Chemseal has you covered. Chemseal’s Trynox Sanitary Welding Elbows are durable, dependable, and hassle-free.

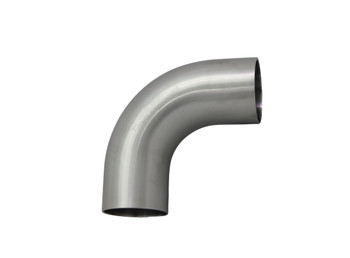

Our stainless steel sanitary 90 degree welding elbow is perfect for use in permanent installations where process piping and equipment can be cleaned in place, saving you time and money.
Don’t settle for a lesser sanitary stainless steel product. Ensure the best business operations with a Chemseal Trynox Sanitary Butt Weld Elbow.
SPECS:
- 90 degree sanitary welding elbow (with straight ends)
- Sizes include 1”, 1.5”, 2”, 2.5”, 3”, and 4”
- Grades include 316L or 304
Tri-Clamp Sizing Guide
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
|---|---|---|---|
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
Tubing Dimensional Tolerances
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
|
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
|
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Gasket Compatibility Chart
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
|
|
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
|
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
|
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
|
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
|
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
|
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
|
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
|
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
|
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
|
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
|
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
