Check Valves:
non-return valve or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction. The valve seat is closed either by mechanical means spring or by process fluid that the flow stream is blocked. The body cavity may be sealed by static seal. The seat can be sealed by o’ring seal.
Sanitary Valves
Valves are process components that provide dynamic seals within the process. Is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure. They also provide seals between the process and the atmosphere.
Control Your Product Flow With Sanitary Check Valve Welding Ends
Your business knows that hygiene standards are paramount to the success of your production. That’s why Chemseal carries our Trynox sanitary check valve welding ends.
- Fits to sanitary stainless steel tubing
- Many elastomeric combinations and different end types
- Comes in multiple sizes and tube wall thickness
- Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature
With Chemseal’s quality guarantee of our sanitary fittings and other stainless steel parts, you can count on the performance of our Trynox sanitary check valve welding ends. Trust in the best-quality sanitary stainless steel fittings company on the market with Chemseal’s metal tube fittings. Note that this valve comes with an EPDM seal as a preset. If you would like this changed, simply let us know when you order. Don’t settle for less in the integral solutions market. Go with Chemseal steel fittings products for optimal hygienic fluid performance and control.
SPECS:

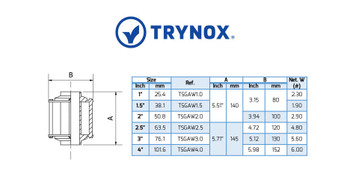

- Trynox TCVAWW sanitary check valve welding ends
- 304 or 316L grade
- 1”, 1.5”, 2”, 2.5”, 3” and 4” sizes
Tri-Clamp Sizing Guide
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
|---|---|---|---|
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
Tubing Dimensional Tolerances
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
|
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
|
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Gasket Compatibility Chart
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
|
|
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
|
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
|
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
|
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
|
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
|
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
|
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
|
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
|
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
|
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
|
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
