Trynox Stainless Steel Sanitary Tubing ASTM A-270 Standards
We Hold Our Standards High With Our Sanitary Tubing
Chemseal’s Trynox Sanitary Stainless Steel ASTM A-270 Standards Tubing is one of our premier products, and sure to satisfy your business operations.
- Cut to size upon request
- Surface finishing 180 Grit ID/150 Grit OD
- Control the flow and direction of your hygienic fluids
- For use in multiple industries and meets ASTM A-270
Our Trynox Sanitary Stainless Steel ASTM A-270 Standards Tubing is available in multiple sizes and grades so that there’s a customized solution for your hygienic fluid operations. To maintain the highest sanitary standards, our sanitary tubing is packed individually in plastic sleeves and covered with plastic caps in both ends. You can trust Chemseal’s decades of integral solution experience. Get our Trynox Sanitary Stainless Steel ASTM A-270 Standards Tubing and other great sanitary fitting products today.
SPECS:
- Trynox ASTM A270 Sanitary Stainless Steel Tubing
- 304 or 316L grade
- 1” x 236”, 1.5” x 236”, 2” x 236”, 3” x 236” and 4” x 236” sizes
Tri-Clamp Sizing Guide
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
|---|---|---|---|
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |

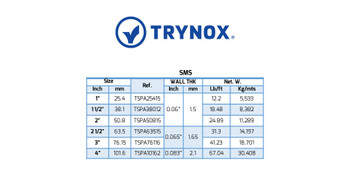

Tubing Dimensional Tolerances
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
|
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
|
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
|
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Gasket Compatibility Chart
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
|
|
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
|
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
|
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
|
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
|
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
|
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
|
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
|
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
|
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
|
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
|
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
|
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
